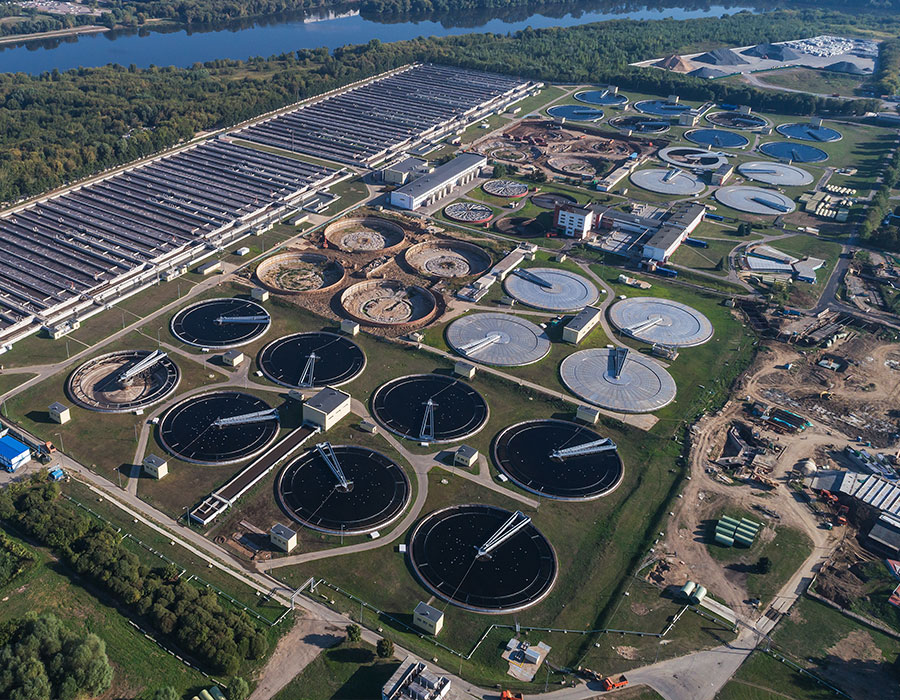

Sewage Water Treatment Plant

Managing sewage is no longer only about disposing of wastewater. Residential communities, hotels, hospitals, commercial buildings, institutions, industrial campuses, and other facilities increasingly need a dependable system that can treat sewage, protect the environment, and make treated water suitable for safe discharge or reuse. A properly designed Sewage Water Treatment Plant can help organizations manage wastewater systematically while reducing the pressure on freshwater resources.

What Is a Sewage Water Treatment Plant?

A Sewage Water Treatment Plant, commonly called an STP, is a treatment system designed to process sewage generated from residential, commercial, institutional, hospitality, and other facilities.

An STP uses a sequence of physical, biological, chemical, or combined treatment processes to reduce these contaminants. Depending on the selected technology and final water-quality requirements, treated water may be discharged or further polished for suitable reuse applications.

Why Is an STP Important for Modern Facilities?

The requirement for sewage treatment is closely connected with increasing development, water consumption, and the need for responsible wastewater management.

CPCB operates within India’s water-pollution control framework and maintains technical material and monitoring information related to sewage treatment and wastewater management. Regulatory requirements can vary according to the project and applicable permissions, so an STP should be designed with the relevant requirements in mind rather than relying on a generic specification.

How Does a Sewage Water Treatment Plant Work?

There is no single treatment sequence that is suitable for every STP. The process depends on wastewater characteristics, flow variation, required treated-water quality, available land, operating conditions, and selected technology.

A typical STP may include several stages.

1. Screening

The incoming sewage first passes through a screening arrangement.

2. Equalization

Sewage flow is rarely constant throughout the day. Residential and commercial facilities may experience significant variations between peak and low-flow periods.

This is particularly important when:

• Occupancy changes throughout the day
• Water consumption varies considerably
• The facility has intermittent operation
• The treatment system needs a more stable hydraulic load

3. Biological Treatment

Many STPs use biological treatment to reduce biodegradable organic matter.

Common biological STP technologies include:

• MBBR – Moving Bed Biofilm Reactor
• SBR – Sequential Batch Reactor
• Activated Sludge Process
• Extended Aeration
• Other customized biological configurations

The selection should be based on the actual project rather than assuming that one technology is automatically suitable for every site.

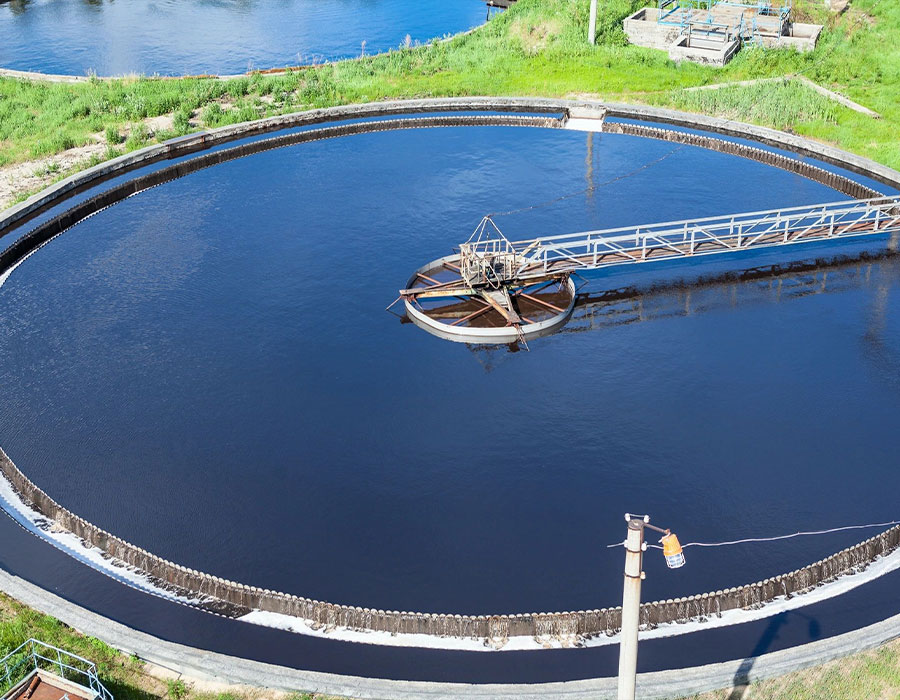

4. Secondary Clarification or Solid Separation

After biological treatment, microorganisms and suspended solids need to be separated from the treated water.

5. Filtration

Where required, additional filtration can improve the quality of the treated water.

Possible filtration arrangements include pressure sand filtration, activated carbon filtration, or other suitable polishing systems.

6. Disinfection

Even after physical and biological treatment, microorganisms may remain in the treated water.

Depending on the application, systems may use technologies such as:

• Chlorination
• Ultraviolet treatment
• Other approved disinfection arrangements

The correct disinfection method depends on the required water quality, reuse application, operating conditions, and design.

7. Treated Water Reuse or Discharge

The final treated water can be directed toward an approved discharge route or suitable reuse application, depending on its quality and the applicable requirements.

Main Types of Sewage Treatment Plant Technologies

Choosing the right technology is one of the most important decisions when developing an STP.

MBBR Sewage Treatment Plant

MBBR uses specially designed carrier media inside the biological reactor. Microorganisms grow on the media and help treat biodegradable organic matter.

SBR Sewage Treatment Plant

SBR, or Sequential Batch Reactor, performs different treatment stages within a controlled sequence.

Activated Sludge Process

The Activated Sludge Process is a conventional biological treatment approach.

ASP can be considered for larger applications where land availability, process familiarity, and operating resources support this type of plant.

Extended Aeration

Extended aeration provides longer biological treatment conditions and can be used for several domestic sewage applications.

Electrolytic Sewage Treatment

Electrolytic treatment is another approach offered for sewage and wastewater applications. It uses electrochemical processes to destabilize and separate contaminants.

However, technology selection should be based on actual wastewater testing and project requirements rather than selecting a process simply because it is newer or more compact.

How to Select the Right STP Capacity?

STP capacity should not be selected only by looking at the average daily water consumption.

Similarly, an industrial campus may have multiple wastewater streams that require separate assessment before determining the final STP configuration.

Why Peak Flow Matters

Designing only around average flow can create problems during high-inflow periods.

At the same time, excessive oversizing can also create operational problems and unnecessary capital expenditure.

What Parameters Should Be Considered Before Designing an STP?

A reliable STP design begins with understanding the wastewater.

Important parameters may include:

Parameter	Why It Matters
Flow rate	Determines plant capacity
Peak flow	Helps establish hydraulic design
pH	Influences biological and chemical processes
BOD	Indicates biodegradable organic loading
COD	Indicates overall oxidizable organic load
TSS	Determines suspended-solid removal requirements
Oil & grease	May require additional separation
Nitrogen	May influence nutrient-removal requirements
Phosphorus	May require additional treatment depending on application
Microbial quality	Important for treated-water reuse and disinfection
Temperature	Can affect biological activity
Water-reuse requirement	Determines final polishing requirements

Laboratory analysis of representative sewage is often valuable when designing a new plant or upgrading an existing one.

STP for Different Applications

An STP does not serve only residential societies. Different types of facilities generate different sewage patterns.

Residential Societies and Townships

Residential projects may experience predictable daily variations in wastewater generation.

Hotels and Resorts

Hotels can experience major changes in occupancy and water consumption.

Hospitals

Hospital wastewater requires careful consideration because its characteristics can differ from ordinary domestic sewage.

Educational Institutions

Schools, colleges, hostels, and campuses can have highly variable occupancy depending on academic schedules, holidays, and hostel populations.

Commercial Buildings

Shopping complexes, office buildings, malls, and mixed-use developments may generate sewage based on occupancy and business hours.

Industrial Campuses

Industrial sites may have domestic sewage from employees and staff in addition to process wastewater.

Domestic sewage may be suitable for an STP, while process wastewater may require an ETP or another specialized treatment system. Mixing wastewater streams without proper assessment can complicate treatment performance.

What Makes a Good STP Design?

A successful STP is not defined by one piece of equipment. It is the result of several design decisions working together.

A good STP design should consider:

Hydraulic Design

Tanks, pipelines, pumps, channels, and treatment units should be appropriately sized for expected flow conditions.

Process Design

Each treatment stage should have a clear purpose and sufficient capacity.

Mechanical Design

Pumps, blowers, mixers, screens, valves, and other equipment should be selected according to process requirements and operating conditions.

Electrical and Automation Design

Automation can help control pumps, blowers, valves, dosing systems, alarms, and other equipment.

Sludge Management

Treatment does not make solids disappear.

Maintenance Accessibility

Equipment that cannot be accessed easily can become difficult and expensive to maintain.

Compact STP vs Conventional STP

Space is an important factor in many modern projects.

A compact STP can be beneficial where:

• Land availability is limited
• The plant needs to fit into an existing facility
• Retrofit work is required
• Construction time needs to be controlled
• Modular installation is preferred

However, compactness should not be the only selection criterion.

A smaller footprint can sometimes involve greater equipment integration, automation, or specific operating requirements. Therefore, the right comparison should include both capital and long-term operating considerations.

CAPEX vs OPEX: What Should Buyers Consider?

The lowest initial quotation does not necessarily represent the lowest total cost.

When evaluating an STP, buyers should consider:

CAPEX

• Civil construction
• Tanks and structures
• Mechanical equipment
• Electrical systems
• Automation
• Piping
• Installation
• Commissioning

OPEX

• Electricity
• Chemicals where required
• Replacement parts
• Sludge handling
• Labour
• Preventive maintenance
• Equipment servicing
• Consumables

A useful approach is to evaluate the expected lifecycle cost rather than comparing only the initial purchase price.

Common STP Problems and Their Causes

Even a properly designed plant can underperform if it is poorly operated or maintained.

Excessive Foaming

Foaming may be associated with biological conditions, surfactants, process imbalance, or other operational factors.

Poor Settling

Poor sludge settling may occur because of biological imbalance, hydraulic overloading, sludge characteristics, or inadequate process control.

High BOD or COD in Treated Water

Possible contributing factors include:

• Excessive organic loading
• Insufficient aeration
• Poor biological activity
• Hydraulic shock loads
• Inadequate retention time
• Process-control problems

High TSS

High treated-water TSS may result from:

• Poor settling
• Clarifier problems
• Sludge carryover
• Excessive hydraulic loading
• Filtration issues

Unpleasant Odour

Odour can be associated with stagnant sewage, insufficient aeration, accumulated solids, poor housekeeping, or anaerobic conditions.

STP Operation and Maintenance

Installing an STP is only the beginning.

Important activities can include:

• Checking pumps and blowers
• Inspecting electrical panels
• Monitoring process parameters
• Checking dissolved oxygen where applicable
• Monitoring sludge levels
• Cleaning screens
• Inspecting pipelines and valves
• Checking filtration systems
• Maintaining disinfection systems
• Monitoring treated-water quality
• Recording operating data
• Scheduling preventive maintenance

Regular monitoring also helps operators identify developing problems before they become major failures.

What Should You Ask an STP Manufacturer Before Buying?

Before selecting a Sewage Water Treatment Plant STP Plant Manufacturer, ask practical questions rather than focusing only on the quotation.

1. How is the plant capacity calculated?

The manufacturer should be able to explain the design basis, including average and peak flow assumptions.

2. Which treatment technology is proposed?

Ask why the technology is suitable for your wastewater and site.

3. What treated-water quality is expected?

The manufacturer should define expected output parameters based on the selected design and applicable requirements.

4. What is the expected power consumption?

Electricity can become a significant component of long-term operating cost.

5. How much land is required?

The complete footprint should be considered, including access and maintenance areas.

6. What is the sludge-management arrangement?

Sludge handling should be considered during the design stage rather than after commissioning.

7. What automation is included?

Ask whether the plant includes automatic controls, alarms, instrumentation, PLC, SCADA, or remote monitoring options where applicable.

8. What happens after installation?

Commissioning, operator training, spare parts, troubleshooting, AMC, and O&M support can be important for long-term reliability.

Why Choose BT Water Treatment for a Sewage Water Treatment Plant?

Selecting an STP manufacturer is ultimately about more than purchasing treatment equipment. The supplier should understand process engineering, site conditions, equipment integration, commissioning, and long-term plant operation.

Custom-Engineered STP Solutions

Different facilities have different wastewater characteristics and operating conditions. BT Water Treatment states that its STP systems are engineered according to project requirements rather than relying on a one-size-fits-all arrangement.

Multiple STP Technology Options

BT Water Treatment’s current STP information covers technologies including MBBR, SBR, Activated Sludge Process, Extended Aeration, Electrolytic Sewage Treatment, and packaged modular configurations. This allows technology selection to be considered according to factors such as flow, footprint, automation, operating requirements, and project objectives.

Engineering, Fabrication and Turnkey Support

The company’s current turnkey-services information describes support covering feasibility studies, hydraulic design, P&ID and layout drawings, procurement and manufacturing, installation, commissioning, electrical and automation integration, documentation, training, and handover.

Automation and Monitoring Options

For projects requiring greater process visibility, BT Water Treatment states that PLC/SCADA and remote-monitoring options are available for its STP solutions. The exact automation configuration can be determined according to project requirements.

AMC and O&M Support

An STP requires attention after commissioning as well. BT Water Treatment provides AMC and O&M support for STPs and other water-treatment systems, with services described on its website including scheduled maintenance, inspection, calibration, servicing, water-quality audits, and performance optimization.

Experience Across Water and Wastewater Treatment

BT Water Treatment states that it has been serving industrial and domestic sectors across India and overseas for more than 30 years and identifies itself as an ISO 9001:2015-certified company. These are company-stated credentials and should be considered alongside the specific technical proposal, scope, and project references for your application.

What Information Should You Give an STP Manufacturer?

The quality of the final design depends partly on the quality of information provided at the beginning.

STP Selection Checklist

Before finalizing a project, compare suppliers using a complete technical checklist.

Selection Factor	What to Check
Capacity	Average and peak flow basis
Technology	Suitability for sewage characteristics
Footprint	Complete operating and maintenance area
Treated water	Required quality and intended use
Energy	Expected power requirement
Sludge	Generation and handling method
Automation	PLC, instruments, alarms and SCADA options
Construction	Material, fabrication and equipment quality
Installation	Scope of erection and commissioning
Maintenance	Accessibility and spare-parts availability
Support	AMC, O&M and troubleshooting
Documentation	Drawings, manuals and operating information
Expansion	Possibility of future capacity enhancement
Commercials	CAPEX plus expected OPE

This approach gives buyers a clearer picture of the complete project instead of comparing suppliers on price alone.

Can Treated Sewage Water Be Reused?

Yes, treated sewage can potentially be reused for suitable non-potable applications when the treated-water quality meets the requirements of the intended use.

The key principle is simple: the intended reuse application should influence the STP design from the beginning.

New STP or Upgrade of an Existing Plant?

Not every wastewater project requires a completely new plant.

An existing STP may sometimes be upgraded when:

• The plant capacity is no longer sufficient
• Equipment has become outdated
• Treated-water quality is inconsistent
• Automation is inadequate
• Energy consumption is high
• Sludge handling is inefficient
• Additional filtration or disinfection is required
• The facility wants to introduce water reuse

A technical assessment can determine whether rehabilitation, retrofitting, expansion, or complete replacement is the more appropriate approach.

The Right STP Is a Site-Specific Solution

A Sewage Water Treatment Plant should not be selected from a catalogue based only on KLD capacity.

Two facilities with the same nominal sewage flow can have very different requirements because of differences in:

• Occupancy
• Flow pattern
• Wastewater characteristics
• Land availability
• Treated-water requirements
• Automation expectations
• Power availability
• Operating manpower
• Sludge-management arrangements

For this reason, the role of a Manufacturer STP Plant supplier should extend beyond fabrication and equipment supply. The manufacturer should be able to understand the application, develop an appropriate process design, integrate the equipment, commission the system, and provide support after installation.

Conclusion

A Sewage Water Treatment Plant (STP) is an important part of responsible wastewater management for residential, commercial, institutional, hospitality, and suitable industrial applications. However, successful sewage treatment depends on much more than installing tanks, pumps, blowers, and filters.

For buyers comparing a Sewage Water Treatment Plant STP Plant Manufacturer, the most useful approach is to evaluate technical design, customization, equipment integration, automation, commissioning, after-sales support, and lifecycle cost together.

A well-designed STP is not simply wastewater equipment—it is a long-term infrastructure system that should be planned around the actual needs of the facility.

FAQs

1. What is a Sewage Water Treatment Plant?

A Sewage Water Treatment Plant, or STP, is a system used to treat wastewater generated from residential, commercial, institutional, hospitality, and other suitable sources before discharge or reuse.

2. Which technology is best for an STP?

There is no single technology that is best for every application. MBBR, SBR, Activated Sludge Process, Extended Aeration, Electrolytic Treatment, and packaged systems may be considered depending on flow, wastewater characteristics, space, treated-water requirements, budget, and operating conditions.

3. Can STP-treated water be reused?

Yes. Depending on the treatment quality and intended application, treated sewage water can potentially be reused for suitable non-potable purposes such as gardening or toilet flushing. Additional polishing or disinfection may be required.

4. What should I check before selecting an STP manufacturer?

Check the manufacturer’s technical design capability, treatment technologies, customization approach, equipment quality, automation options, installation and commissioning scope, expected operating costs, documentation, spare-parts support, AMC/O&M services, and relevant project experience.

5. Does BT Water Treatment provide AMC and O&M support for STPs?

Yes. BT Water Treatment’s website lists AMC and O&M support for STPs and other water-treatment systems, including scheduled maintenance, inspection, servicing, water-quality audits, and performance optimization.
